Standard sizes shown are available on-hand in-stock and can be shipped anywhere.

Custom sizes can be made if ordered in advance. Contact a USAP business development office for more info.

Walls are attached via mending plate and screws. One on top at seam, and a smaller one on bottom face. Great for quick & temporary installs.

USAP’s SlimLine Aluminum Truss™ provides a super sleek lightweight solution - holds much more weight compared to the competition and can be configured in any orientation by adding junctions to create the shape you require.

Truss can be provided in 10’ and 20’ common sizes. Custom Sizes can be accommodated. Contact your USAP rep for info and more detailed specifications.

Max weight

UDL - 649lbs p/10’ln 602lbs p/20’ln

Pnt - 356lbs p/10’ln 249lbs p/20’ln

USAP’s Advanced Rigging Technology makes for rapid installation, up to 6 times faster than traditional hanging systems. Versatile and simple to use USAP’s Advanced Rigging System is aesthetically discreet, lightweight, and strong. Industry approved with a 5:1 safety factor.

Lighting service is delivered via recessed track inside the truss allowing for maximum and precise lighting positions.

Electrical Drops are available and can be added at any point in truss system to provide a power outlet to exhibitors or for auxiliary use.

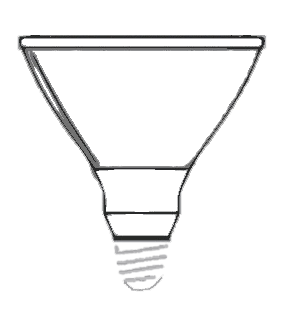

Shape - PAR38

Voltage - 90 to 132VAC Hertz - 50/60Hz

Watts - 20W

Actual Draw - 250mA

Color Temp. - 2700K

Flood Beam Angle - 40°

Spot Beam angle - 25°

Bulb Length - 5-5/16"

Lumens - 1000
